CONV032 - Rev. 0

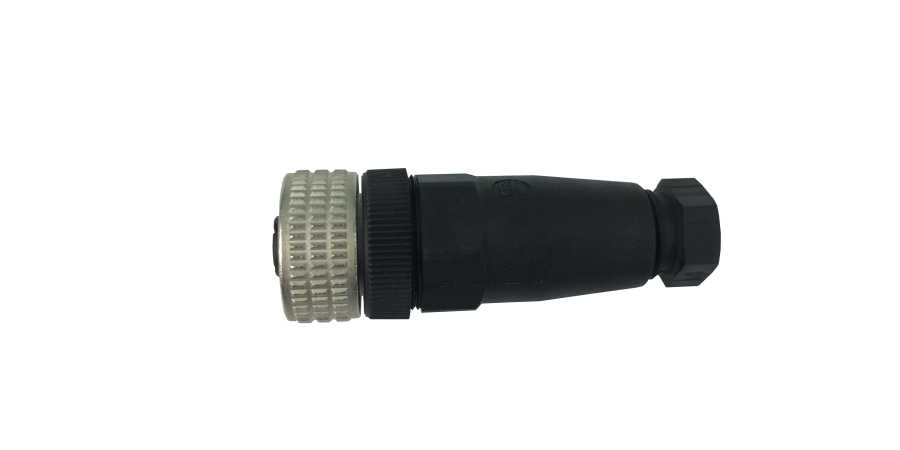

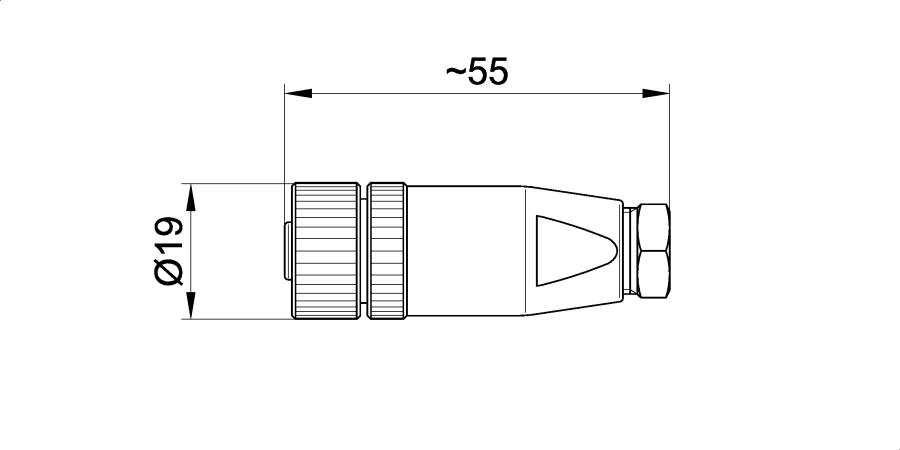

M12x1 STRAIGHT CONNECTOR WITH TERMINAL BLOCK 4 PINS

Connector 4 pins socket with screwed connection M12x1 straight

Connector able to connect in a very easy way (through screwed terminal block) cables with whatever lengths and insulations in a high protection degree (IP67)

  • Product Datasheet
  • Download
  • Videos

Technical Specifications

Type of connector
female 4-pin connector with straight output (screw terminals) with M12x1 metal screw lock (in accordance with IEC 61076-2-101 STANDARDS)
Connection body material
THERMOPLASTIC
Connector operating temperature
-25 ÷85°C
Cable gland dimension
Ø 4 ÷6 mm
Maximum conductor gauge
18 AWG
International protection marking (*)
(*) According to IEC 60529
IP67
