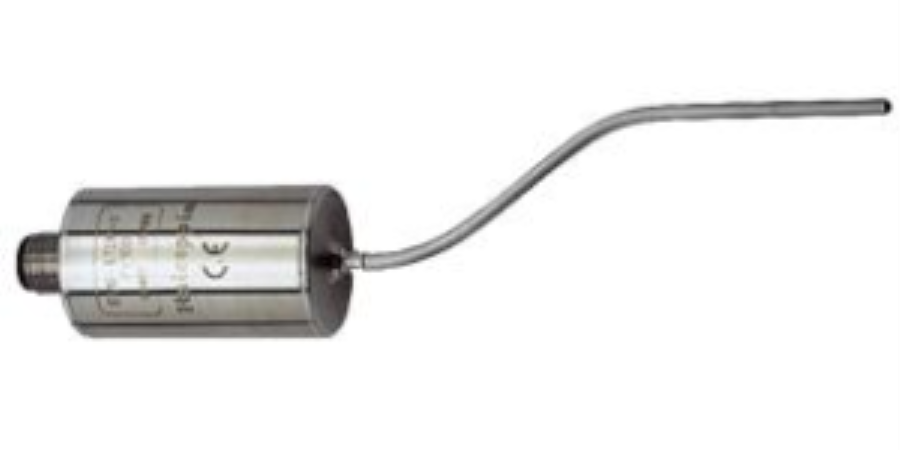

Technical Specifications
Electrical technical data
Power supply
12 ÷30 Vdc (polarity protected)
Power consumption
max. 0,7W
Accuracy (*)
(*) @25°C
± 0.5 °C (electronic section temperature -10÷50 °C)
Electronic board input Pt100
± 2 °C (electronic section temperature -10÷50 °C)
Electronic board input thermocouple
Output
Transistor PNP
Output NPN on request
refresh interval 1 second
max. pilot current 100 mA (with short-circuit protection)
Transistor NPN
Range configurations
It is possible set the device by EVOSTOPSET configuration kit (it is needed a PC with OS Windows).
Electronic board operating temperature
-25 ÷80°C
Sensing element operating temperature range (Pt100)
-100 ÷500°C
Sensing element operating temperature range (Thermocouple)
0 ÷1100 °C
Resolution
Pt100
0,1 °C
Thermocouple
1 °C
Sensing element
Pt100 Ω @ 0°C
thermocouple
M.I.C. min. bending radius
3 times the outer diameter (except the sensing tip which length is ~30 mm)
Sheet material
AISI 316
Type of sensor thermoresistance
INCONEL 600
Type of sensor thermocouple
Connector
Male M12 x 1 in accordance with IEC 61076-2-101 STANDARDS (output)
International protection marking (*)
(*) According to IEC 60529
IP67
Diameter sensor
sensor Ø2
sensor Ø3
sensor Ø4.5
sensor Ø6
Stem length L
100 mm
150 mm
250 mm
350 mm
500 mm
750 mm
1000 mm
