G025004A - Rev. 0 [OBSOLETE]

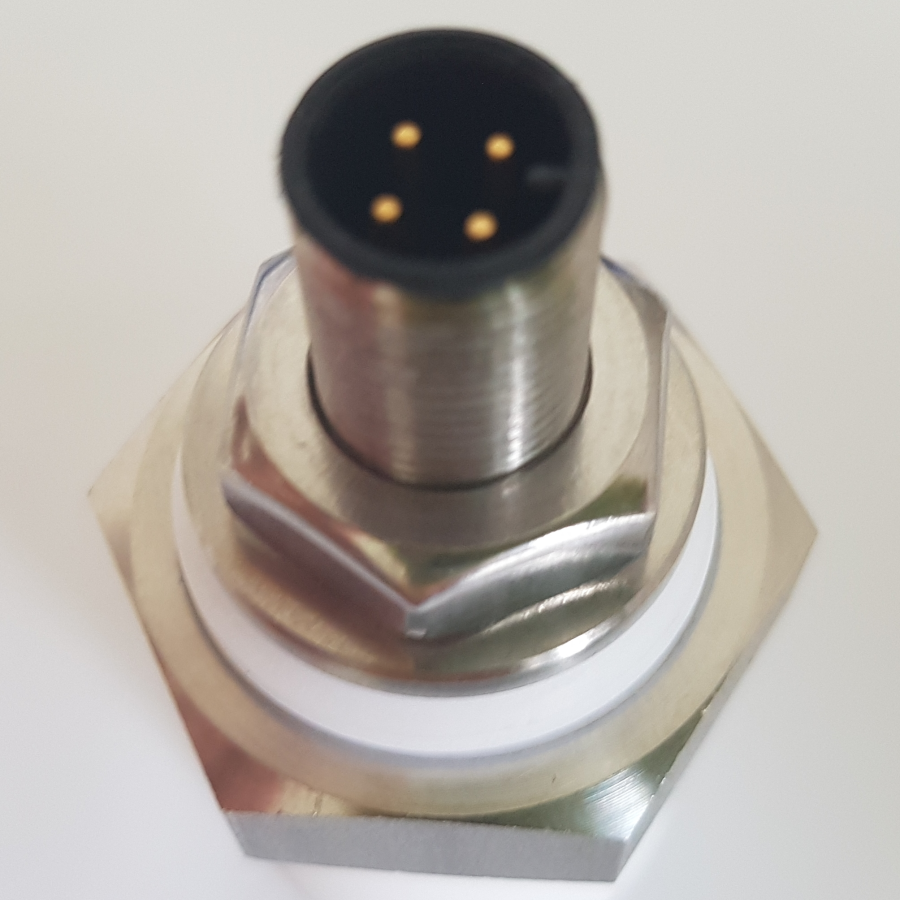

Pt 100 COMPACT PROBE FOR SCARPED SURFACES

Pt100 cl.A RTD probe for double-bottoms installations that do not allow the sensor to overhang

The particular construction allows to obtain an optimum measurement of the temperature on a heated wall and in the presence of a scraper that does not allow protrusions that would make difficult the scraping and the cleaning of the surface. The influence of steam on the measurement is reduced to a minimum. The probe connection is simplified by the use of an M12 type connection with IP67 protection level.

  • Product Datasheet
  • Download
  • Videos

Technical Specifications

Sensing element
Pt100 Ω @ 0°C
Sensing Element configuration
single 4-wire
Output signal type
thermoresistance
Accuracy class in accordance to IEC751 (*)
(*) The accuracy class is valid only in the temperature range indicated by the norm
cl. A
Sensing part maximum working temperature
130°C
Sheet material
AISI 316
Support material
PTFE
Type of connector
male 4-pin connector with M12x1 metal screw lock (in accordance with IEC 61076-2-101 STANDARDS)
Connection body material
AISI 316
Maximum connector temperature
90°C
wall thickness (S)
12 ÷15 mm
