Technical Specifications
Electrical technical data
Power supply
19,5 ÷28,5 Vcc (polarity protected)
Power consumption
max. 5W
Accuracy (*)
(*) @25°C
temperature: ±0,3°C

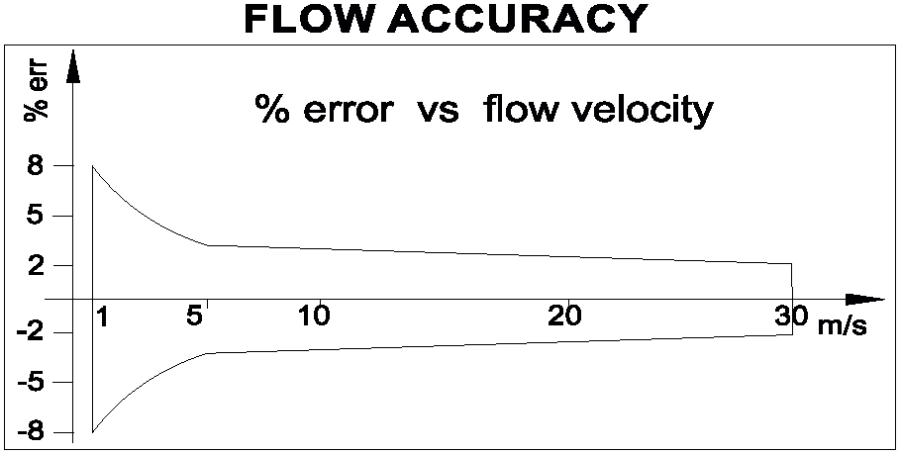

flow: refer to the graph
Permitted load
500 Ω @ 24 Vcc [RLΩ= (Vsupply - 12) / 0,022]
Output signal type
flow: 4÷20 mA
temperature: 4÷20 mA
Output insulation
2.5 KV (for both outputs)
Range configurations
modifiable using the special ICFLOW-SET configuration kit (a PC with Windows operating system is required)
Electronic board operating temperature
-35 ÷80°C
EMC
According to EN 61326-1:2013
Sensing element operating temperature range
0 ÷200°C
Flow speed
1 ÷30 m/s
Conditions of use of the sensitive element
dry air
Sensing element
Pt1000 Ω @ 0°C
thermodinamic sensor
Accuracy class in accordance to IEC751 (*)
(*) The accuracy class is valid only in the temperature range indicated by the norm
cl. B

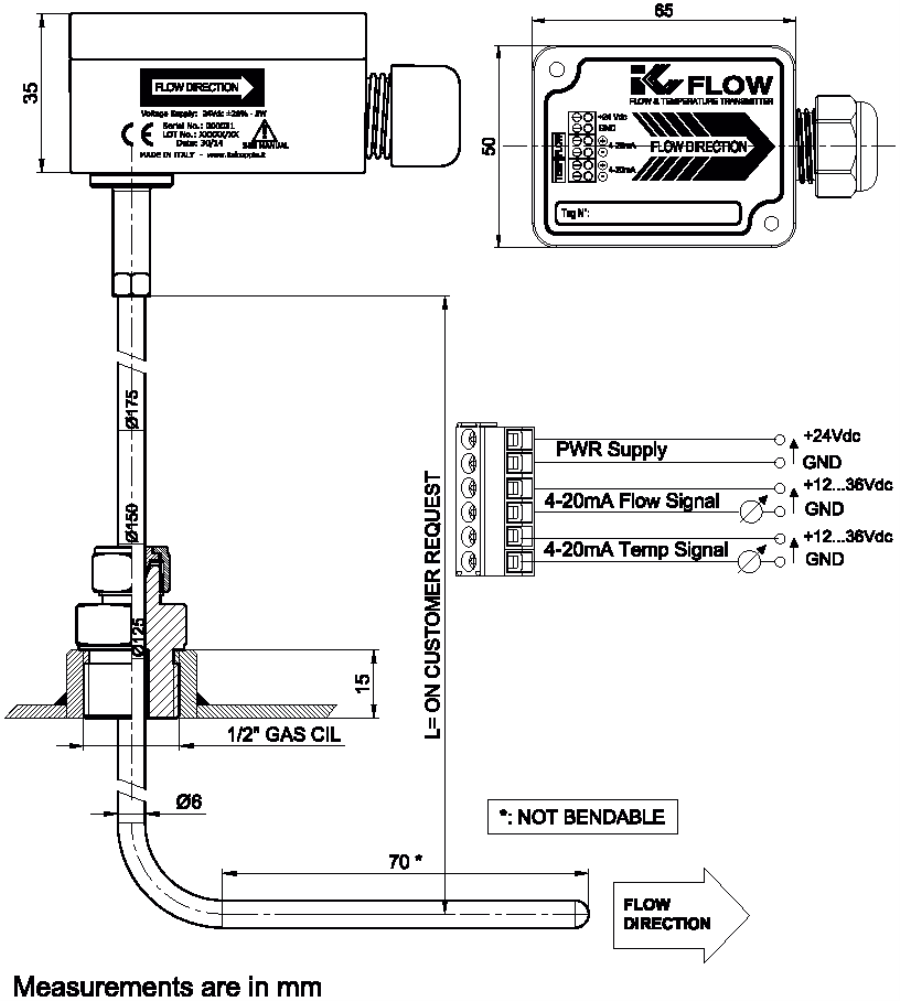

Sheath diameter d
Ø 6 mm
Sheet material
AISI 316L
Stem length L
130 mm
200 mm
260 mm
Other lengths on request
Process connection (*)
(*) Thread STANDARDS (CYL. GAS in accordance with UNI-ISO 228) (CON. GAS in accordance with UNI-ISO 7-1) (NPT in accordance with ANSI B 1.20.1)
male thread G 1/2"UNI ISO 228
Process connection material
AISI 316L
Compensation coefficient
operating pressure
conduit type (circular or rectangular)
conduit section
Connection head / junction box
65 mm x 50 mm x 35 mm
Connection head / junction box material
Glass fibre reinforced polycarbonate
Cable gland dimension
Ø 5 ÷10 mm
International protection marking (*)
(*) According to IEC 60529
IP66
Marking
Stating symbols "SEE MANUAL", "CE", "UKCA", part number, Week / Year of production, power supply range, pinout and serial number
Product marking
The level for installation in central point of all normalised conduits is marked on the stem
