Technical Specifications
Type of connector
female 4-pin connector with M12x1 metal screw lock (in accordance with IEC 61076-2-101 STANDARDS)
Connection body material
POLYAMYDE (MOULDED)
Maximum connector temperature
90°C
International protection marking (*)
(*) According to IEC 60529
IP67

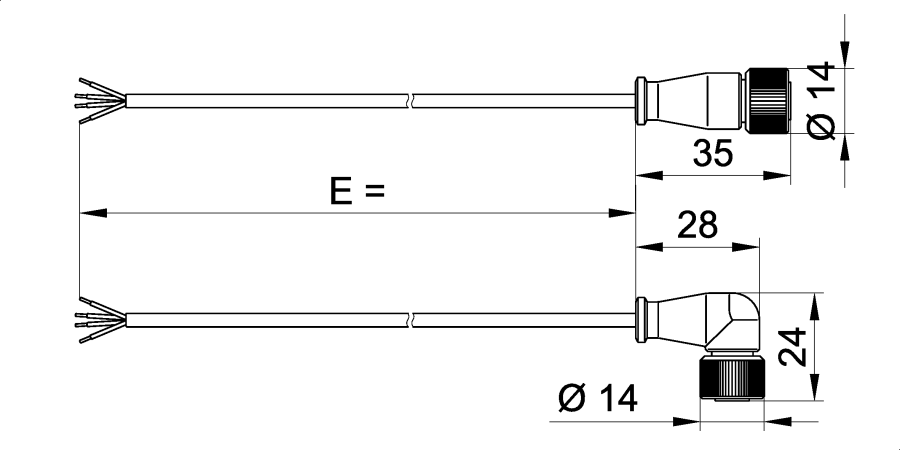

Female connector

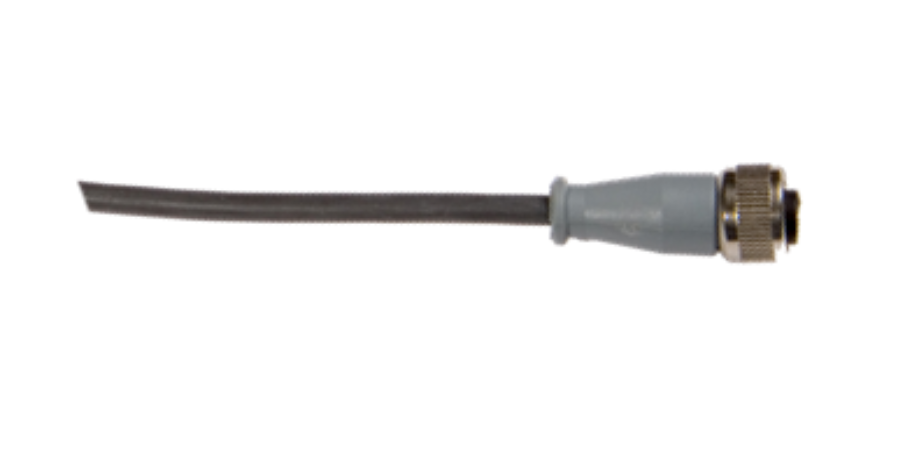

overmoulded straight M12 female connector
overmoulded right-angle M12 female connector
Male connector
contatti aggraffati con portacontatti
Extension cable
silicon 4 wire IEC751 AWG24 Ø4.4 mm
4 WIRES EXTENSION CABLE
Cable conductors
copper
Number of cable conductors
4
Conductor dimension
AWG 24
Conductor feature
strand (7 wire)
Primary insulation
GS (silicone rubber)
Primary insulation colour
2 white, 2 red
Secondary insulation
GS (silicone rubber)
Secondary insulation colour
black
Cable size or external shape
about Ø 4,4 mm
Cable extension E
1500 mm
3 m
5 m
Dimensional notes
Extensions other than those listed can be produced for minimum quantities to be agreed (after our feasibility study)
Shield
