Technical Specifications
Thermocouple calibration
type J (iron-constantan)
Sheet material AISI 304
Sensing part maximum working temperature 600°C
type K (cromel-alumel)
Sheet material INCONEL 600
Sensing part maximum working temperature 1150°C
Number of sensing elements (T/C)
single
Hot measuring joint
insulated
Norm of reference
ANSI MC96.1
IEC 584
Accuracy class in accordance with IEC 584
special
standard
Sheath diameter d
Ø 1 mm
Ø 1.5 mm
Ø 2 mm
Ø 3 mm
M.I.C. min. bending radius
3 times the outer diameter
Insulation resistance
100 M Ω@ 100 Vdc.
Realizable sheat lenghts L= (subject to feasibility check)
50 mm ÷50 m

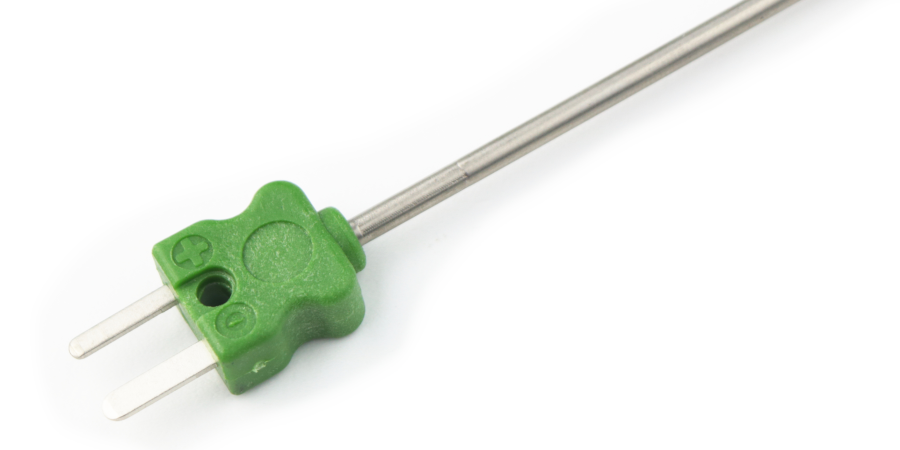

Type of connector
normalised MALE MINIATURE SIZE OVERMOULDED compensated connector (in accordance with ASTM E 1684-96)
Connector remarks at our discretion (depending on the quantity to be produced) the connector could be assembled by hand instead of being OVERMOULDED
Connection body material
POLYAMYDE (MOULDED)
Maximum connector temperature
120°C
