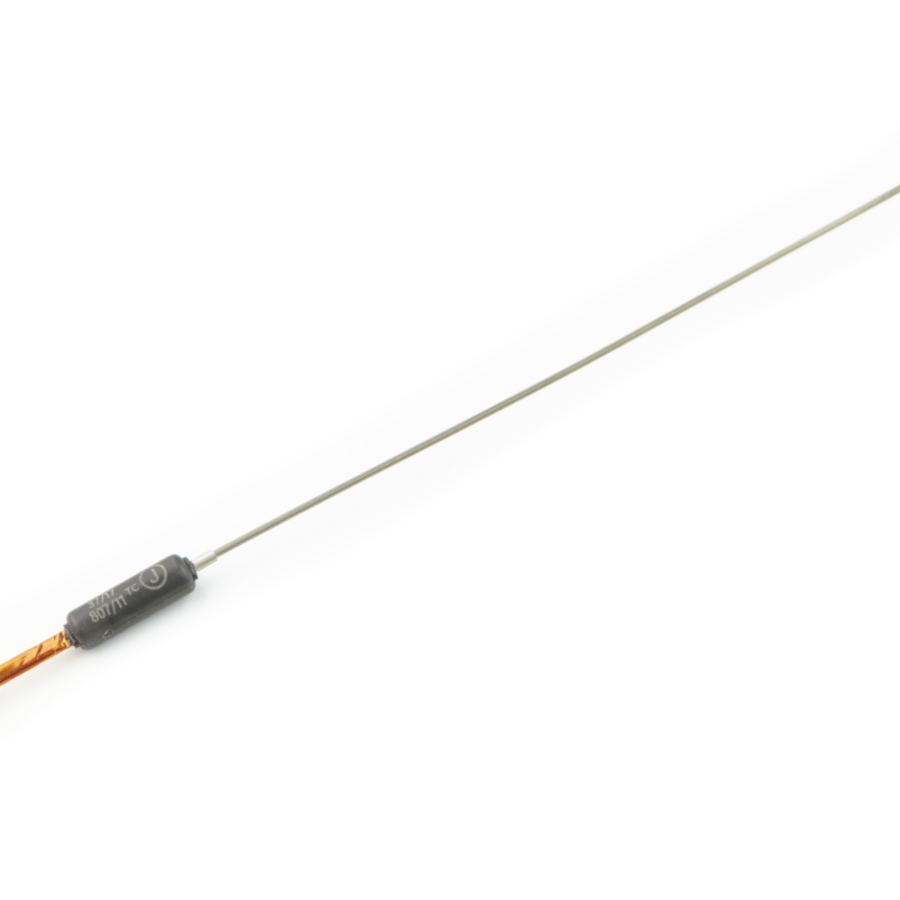

Technical Specifications
Thermocouple calibration
type K (cromel-alumel)
Sheet material INCONEL 600
Sensing part maximum working temperature 1100°C
type J (iron-constantan)
Sheet material AISI 304
Sensing part maximum working temperature 600°C
Number of sensing elements (T/C)
single
Hot measuring joint
insulated
grounded
Output signal type
thermocouple
Accuracy class in accordance with IEC 584
special
standard

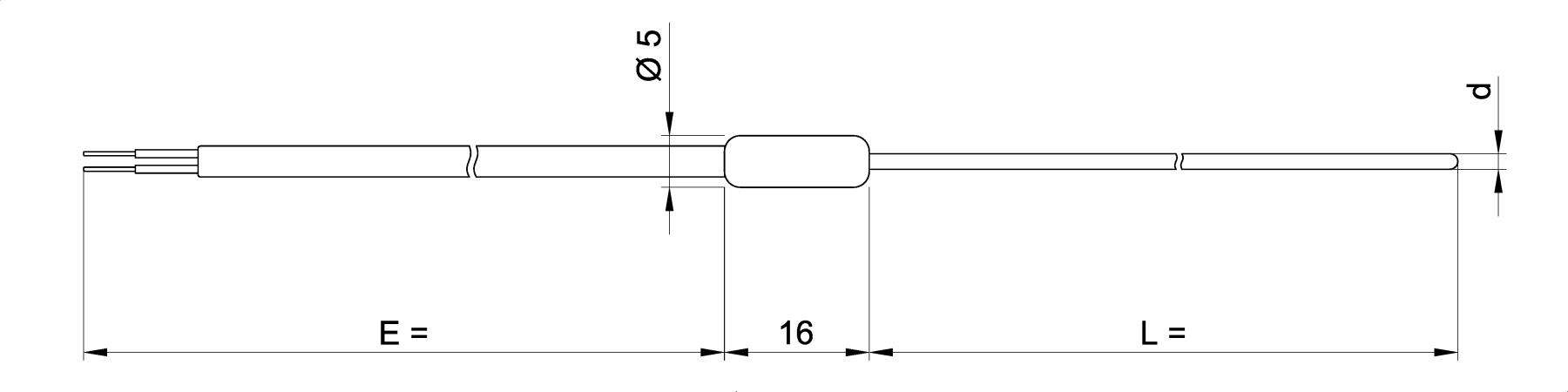

Sheath diameter d
Ø 1 mm
Ø 1.5 mm
M.I.C. min. bending radius
3 times the outer diameter
Insulation resistance
100 M Ω@ 100 Vdc.
Realizable sheat lenghts L= (subject to feasibility check)
50 mm ÷900 mm
Transition sleeve type
H.T. POLYMER Ø 5 x 16 mm
Maximum transition temperature
300°C
Compensated cable
PTFE + Kapton + Kapton; type J IEC
Temperatura massima cavo 300°C
PTFE + Kapton + Kapton; type J DIN
Temperatura massima cavo 300°C
PTFE + Kapton + Kapton; type K IEC
Temperatura massima cavo 300°C
PTFE + Kapton + Kapton; type J ANSI
Temperatura massima cavo 300°C
PTFE + Kapton + Kapton; type K ANSI
Temperatura massima cavo 300°C
EXTENSION CABLE
Cable conductors
tipo J
Norm of reference
IEC 584
Number of cable conductors
2
Conductor dimension
AWG 24
Conductor feature
strand (7 wire)
Primary insulation
PTFE + POLYIMIDE
Secondary insulation
POLYIMIDE
Cable size or external shape
flat wire 2.15 x 1.30 mm approx.
Cable working temperature
-200 ÷200°C (2h @350°C)
EXTENSION CABLE
Cable conductors
tipo J
Norm of reference
DIN 43710
Number of cable conductors
2
Conductor dimension
AWG 24
Conductor feature
strand (7 wire)
Primary insulation
PTFE + POLYIMIDE
Secondary insulation
POLYIMIDE
Cable size or external shape
flat wire 2.15 x 1.30 mm approx.
Cable working temperature
-200 ÷200°C (2h @350°C)
EXTENSION CABLE
Cable conductors
tipo J
Norm of reference
ANSI MC96.1
Number of cable conductors
2
Conductor dimension
AWG 24
Conductor feature
strand (7 wire)
Primary insulation
PTFE + POLYIMIDE
Secondary insulation
POLYIMIDE
Cable size or external shape
flat wire 2.15 x 1.30 mm approx.
Cable working temperature
-200 ÷200°C (2h @350°C)
EXTENSION CABLE
Cable conductors
tipo K
Norm of reference
ANSI MC96.1
Number of cable conductors
2
Conductor dimension
AWG 24
Conductor feature
strand
Primary insulation
PTFE + POLYIMIDE
Secondary insulation
POLYIMIDE
Cable size or external shape
flat wire 2.15 x 1.30 mm approx.
Cable working temperature
-200 ÷200°C (2h @350°C)
EXTENSION CABLE
Cable conductors
tipo K
Norm of reference
IEC 584
Number of cable conductors
2
Conductor dimension
AWG 24
Conductor feature
strand
Primary insulation
PTFE + POLYIMIDE
Secondary insulation
POLYIMIDE
Cable size or external shape
flat wire 2.15 x 1.30 mm approx.
Cable working temperature
-200 ÷200°C (2h @350°C)
Cable lenghts E= (subject to feasibility check)
300 mm ÷4 m
Breaking strain
P max 4 Kgf
