CONV033 - Rev. 0

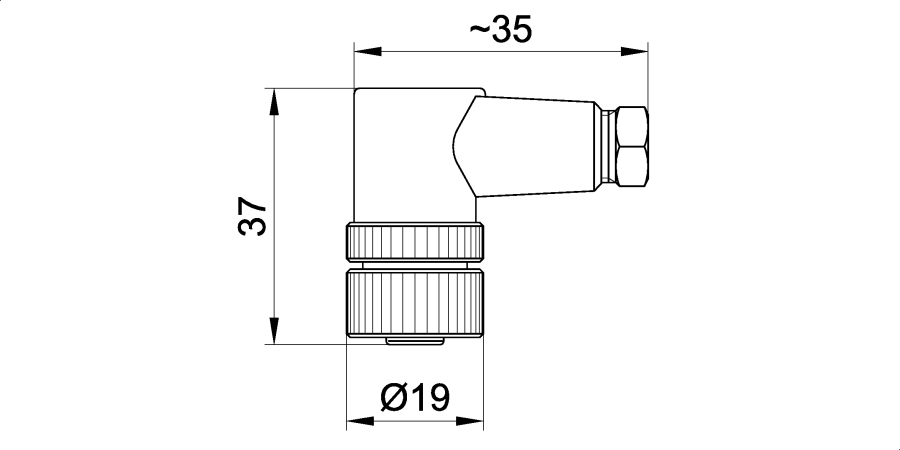

M12x1 ELBOW TYPE FEMALE CONNECTOR WITH TERMINAL BLOCK 4 ELECTRICAL CONTACTS

Female connector 4 pins socket with screwed connection M12x1 and output at 90°

Connector able to connect in a very easy way (through screwed terminal block) cables with whatever lengths and insulations in a high protection degree (IP67)

  • Product Datasheet
  • Download
  • Videos

Technical Specifications

Type of connector
female 4-pin connector with right-angle output (screw terminals) with M12x1 metal screw lock (in accordance with DIN-VDE0627 STANDARDS)
Connection body material
THERMOPLASTIC
Connector operating temperature
-25 ÷85°C
Cable gland dimension
Ø 4 ÷6 mm
Maximum conductor gauge
18 AWG
International protection marking (*)
(*) According to IEC 60529
IP67
