Technical Specifications
Type of connector
normalised FEMALE MINIATURE SIZE compensated connector (in accordance with ASTM E 1684-96)
Connection body material
THERMOPLASTIC
Maximum connector temperature
200°C

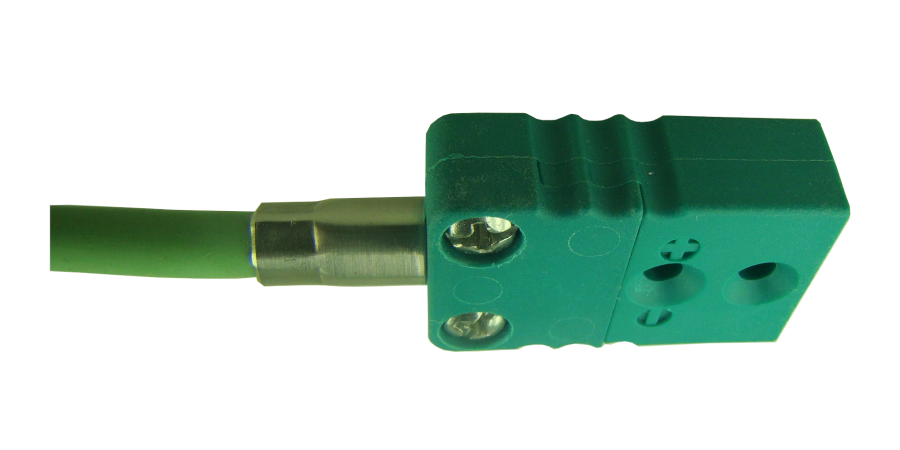

Female connector
2-pin miniature size female connector
Male connector
contatti aggraffati con portacontatti
Compensated cable
silicone; type K IEC

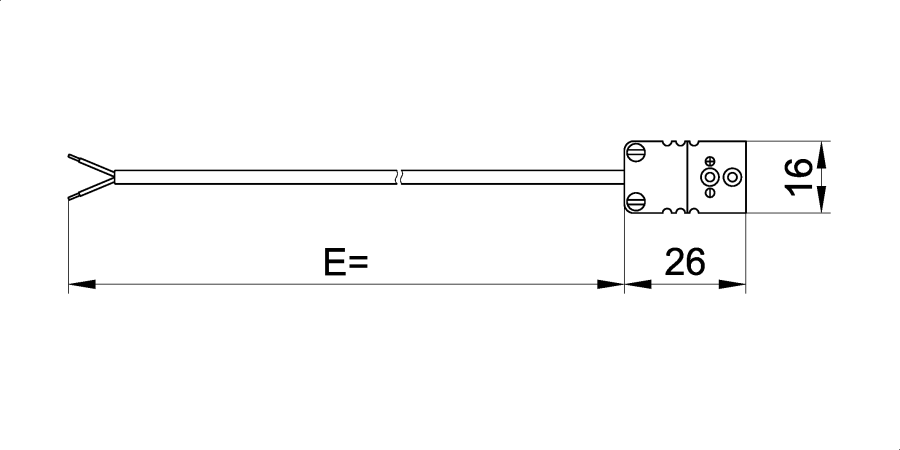

Cable extension E
1500 mm
3 m
5 m
EXTENSION CABLE
Cable conductors
tipo K
Norm of reference
IEC 584
Number of cable conductors
2
Conductor dimension
AWG 24
Conductor feature
strand (7 wire)
Primary insulation
GS (silicone rubber)
Secondary insulation
GS (silicone rubber)
Cable size or external shape
about Ø 4,2 mm
Cable working temperature
-40 ÷180°C
Dimensional notes
Extensions other than those listed can be produced for minimum quantities to be agreed (after our feasibility study)
